OEM | AR 2600 psi Power Pressure Washer Water Pump fits Troy-Bilt 020344 020344-0
- OEM AR 2600 psi Power Pressure Washer Water Pump fits Troy-Bilt 020344 020344-0

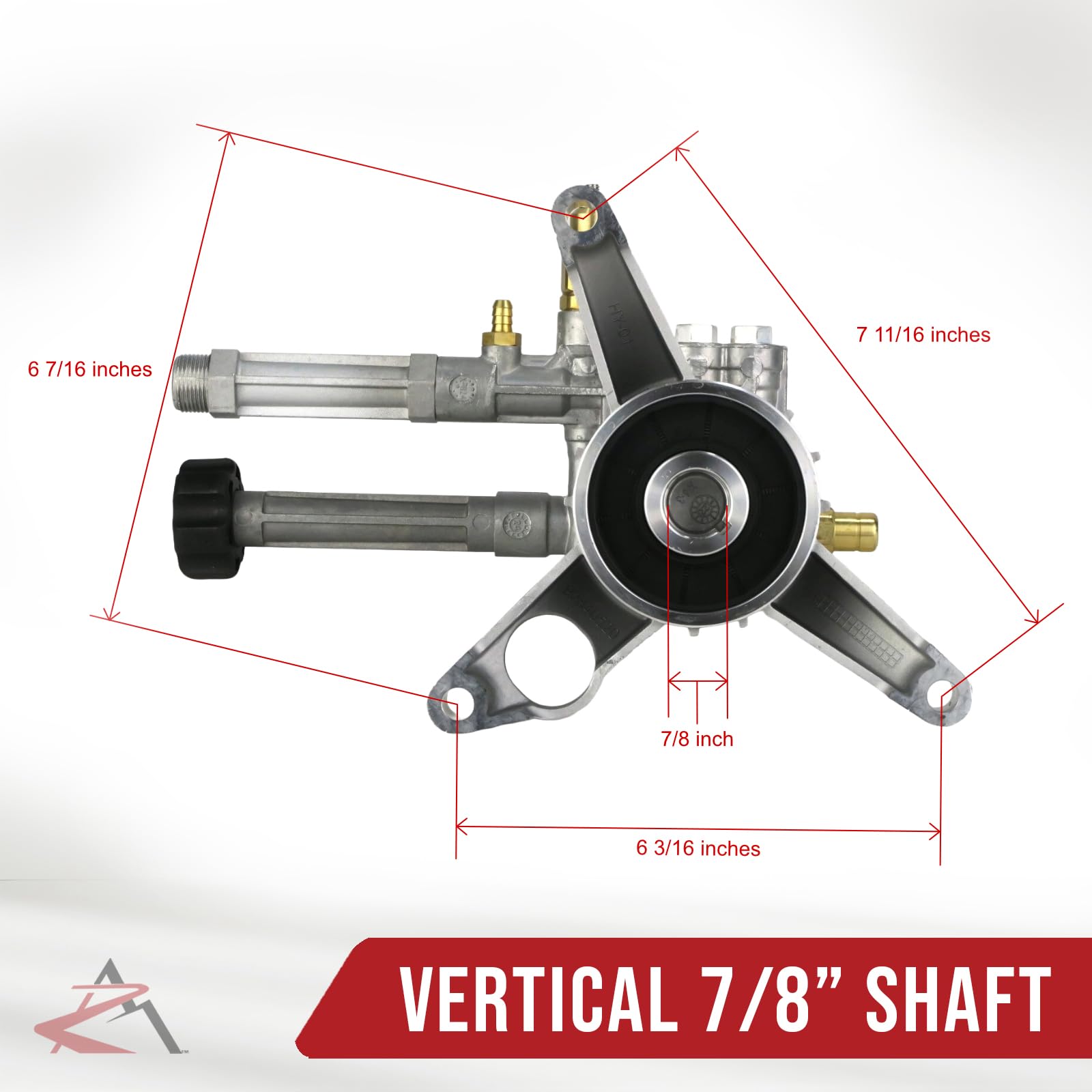

- Specs - Maximum Pressure: 2600 PSI. Maximum Flow: 2.2 GPM. Shaft Size: 7/8". 3 Bolt Pattern: 7 11/16” x 6 3/16” x 6 7/16” from center to center for each bolt hole. Maximum Fluid Temperature: 140° F. Inlet Type: 3/4" GHA. Outlet Type: 22mm x 14mm. Oil Capacity: 2.29oz. Refer to images 2 and 3 for more information

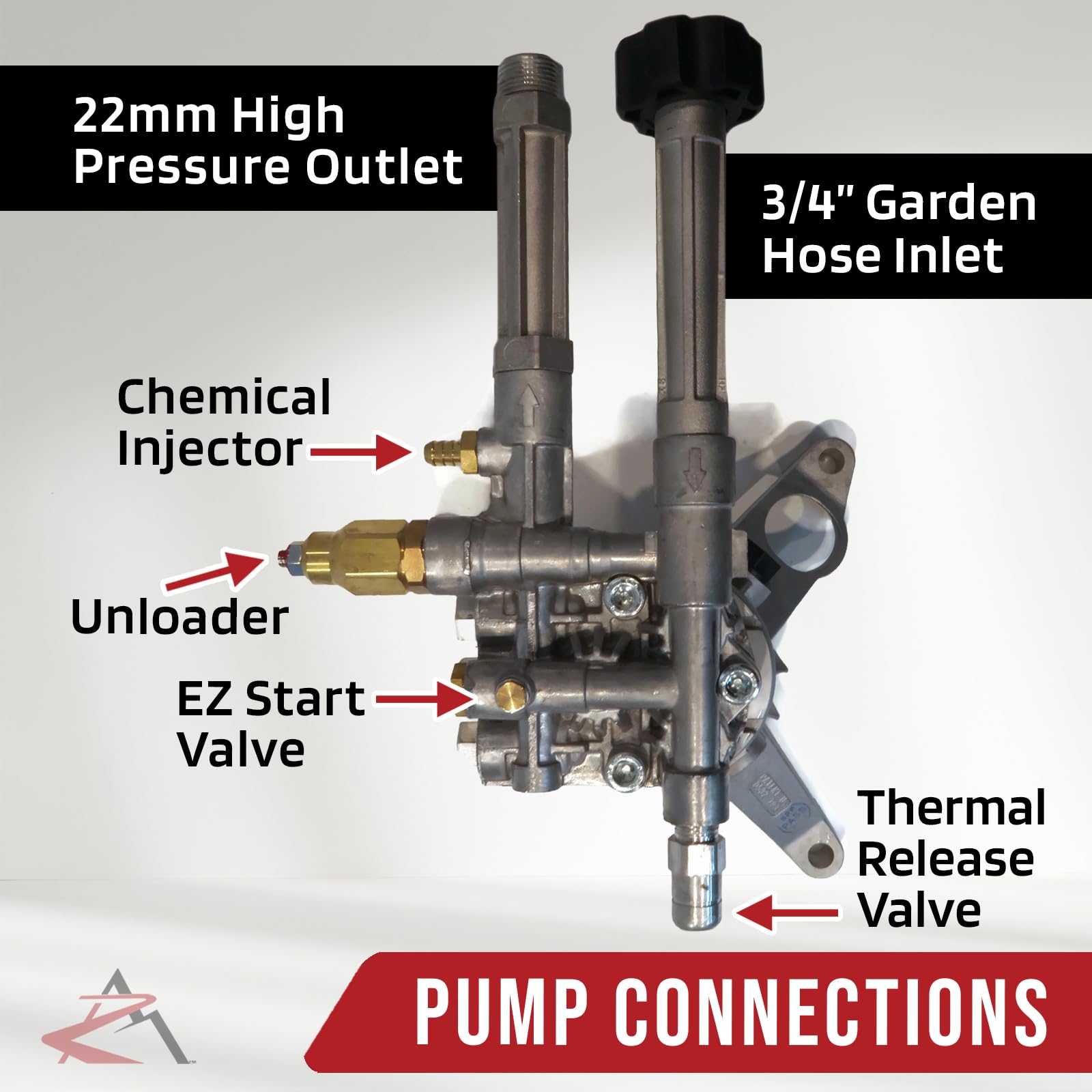

- Includes - (1) Vertical Pressure Washer Pump, SRMW22G26-EZ-SX with Thermal Release Valve & Chemical Injector (both come installed); comes as shown in the first image (does NOT include engine shaft key or bolts)

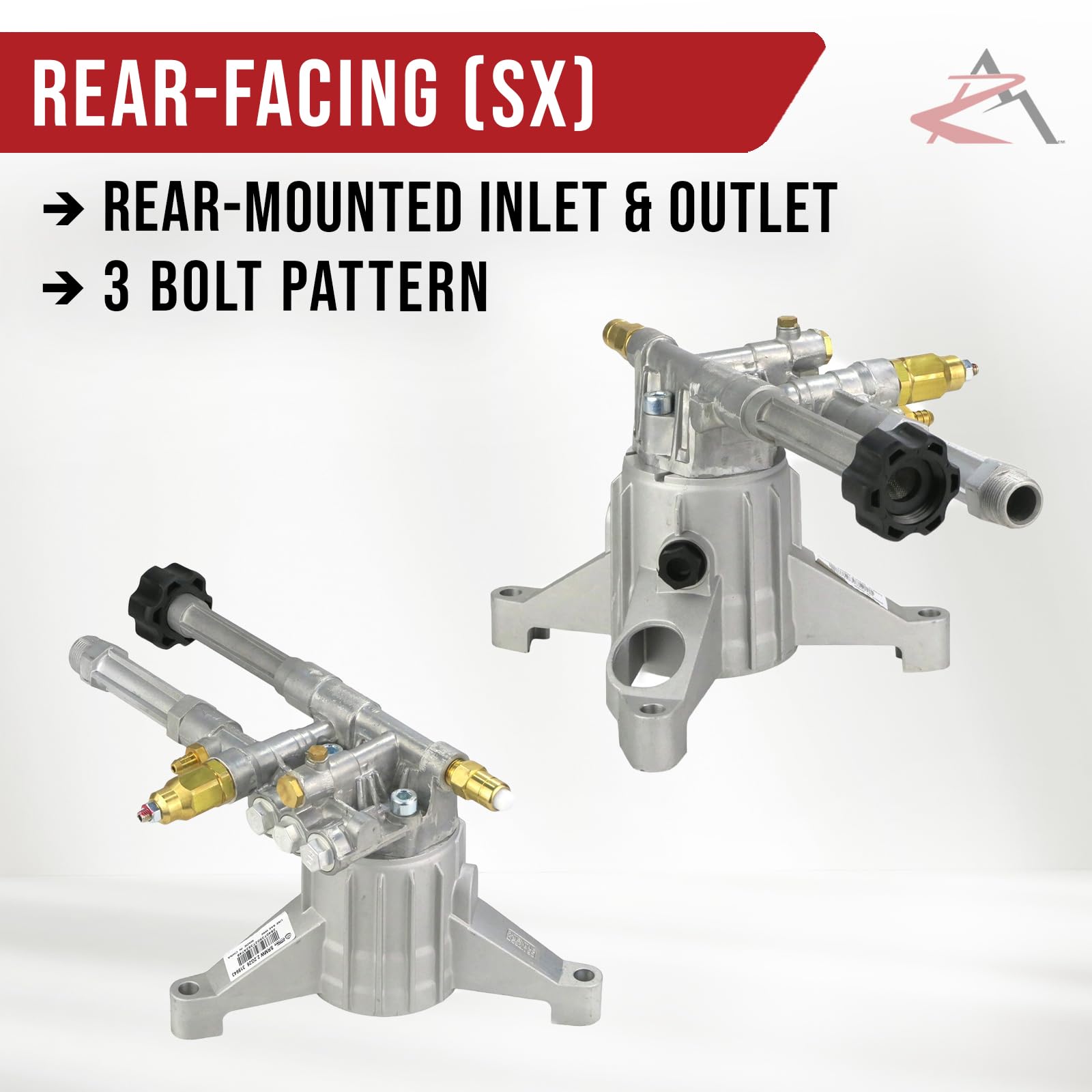

- This pump is for vertical gas engine driven units. This pump mounts directly on to the engine shaft by using a keyed hollow shaft connection system. The mounting flange provides a convenient connection to most 7/8” diameter shaft vertical gas engines with at least 5HP. This is an EZ-SX Rear-Facing (Left-Handed) SX Pump, designed with the outlet positioned at the back. Do NOT run above max PSI rating. Doing so can result in damage to the pump (not covered by warranty) and/or serious bodily injury
- Please confirm your OEM part number, along with your unit's model, spec, type/code, and serial number to ensure this is the correct part for your unit. This part may replace multiple OEM numbers, so verifying every detail is important for a proper fit. If you're unsure or have questions about compatibility, feel free to contact us!
$1,022.40
OEM | AR 2600 psi Power Pressure Washer Water Pump fits Troy-Bilt 020344 020344-0—
$1,022.40
Description
- OEM AR 2600 psi Power Pressure Washer Water Pump fits Troy-Bilt 020344 020344-0
- Specs - Maximum Pressure: 2600 PSI. Maximum Flow: 2.2 GPM. Shaft Size: 7/8". 3 Bolt Pattern: 7 11/16” x 6 3/16” x 6 7/16” from center to center for each bolt hole. Maximum Fluid Temperature: 140° F. Inlet Type: 3/4" GHA. Outlet Type: 22mm x 14mm. Oil Capacity: 2.29oz. Refer to images 2 and 3 for more information
- Includes - (1) Vertical Pressure Washer Pump, SRMW22G26-EZ-SX with Thermal Release Valve & Chemical Injector (both come installed); comes as shown in the first image (does NOT include engine shaft key or bolts)
- This pump is for vertical gas engine driven units. This pump mounts directly on to the engine shaft by using a keyed hollow shaft connection system. The mounting flange provides a convenient connection to most 7/8” diameter shaft vertical gas engines with at least 5HP. This is an EZ-SX Rear-Facing (Left-Handed) SX Pump, designed with the outlet positioned at the back. Do NOT run above max PSI rating. Doing so can result in damage to the pump (not covered by warranty) and/or serious bodily injury
- Please confirm your OEM part number, along with your unit's model, spec, type/code, and serial number to ensure this is the correct part for your unit. This part may replace multiple OEM numbers, so verifying every detail is important for a proper fit. If you're unsure or have questions about compatibility, feel free to contact us!
