OEM Everflo 2.2 GPM, 12 Volt, 70 PSI, Diaphragm Pump EF2200, EF2200-BOX, EF2200BOX
- OEM Everflo 2.2 GPM, 12 Volt, 70 PSI, Diaphragm Pump EF2200, EF2200-BOX, EF2200BOX

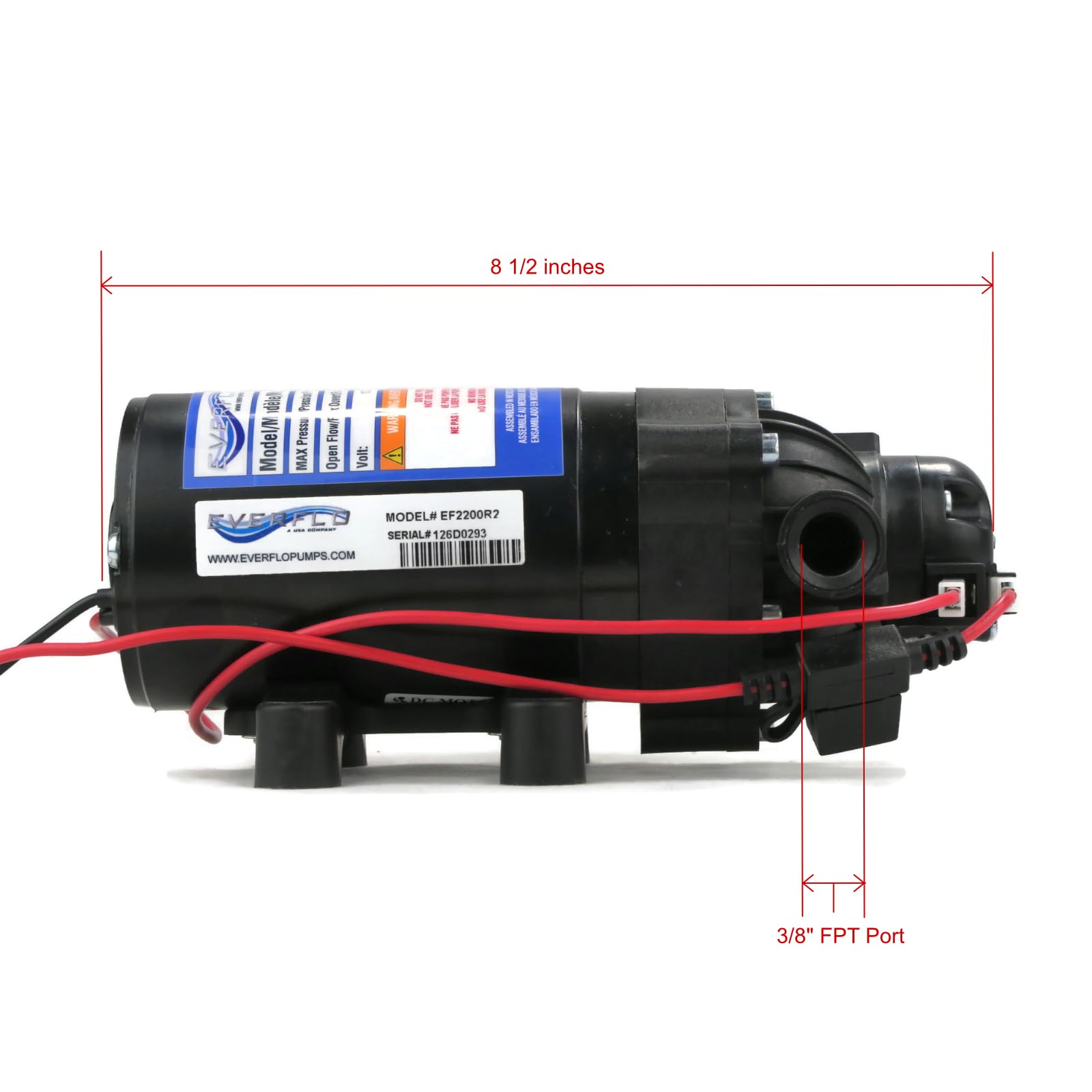

- Specs - Max Pressure: 70 PSI. Open Flow: 2.2 GPM. Volt: 12 VDC. Max AMP: 8.0. Port Type: 3/8" (9.5mm) Hose Barb NPT. Max Fluid Temperature: 140°F. Self Priming up to 10 Feet. Standard Mount Pattern. Refer to images 2 & 3 for more information

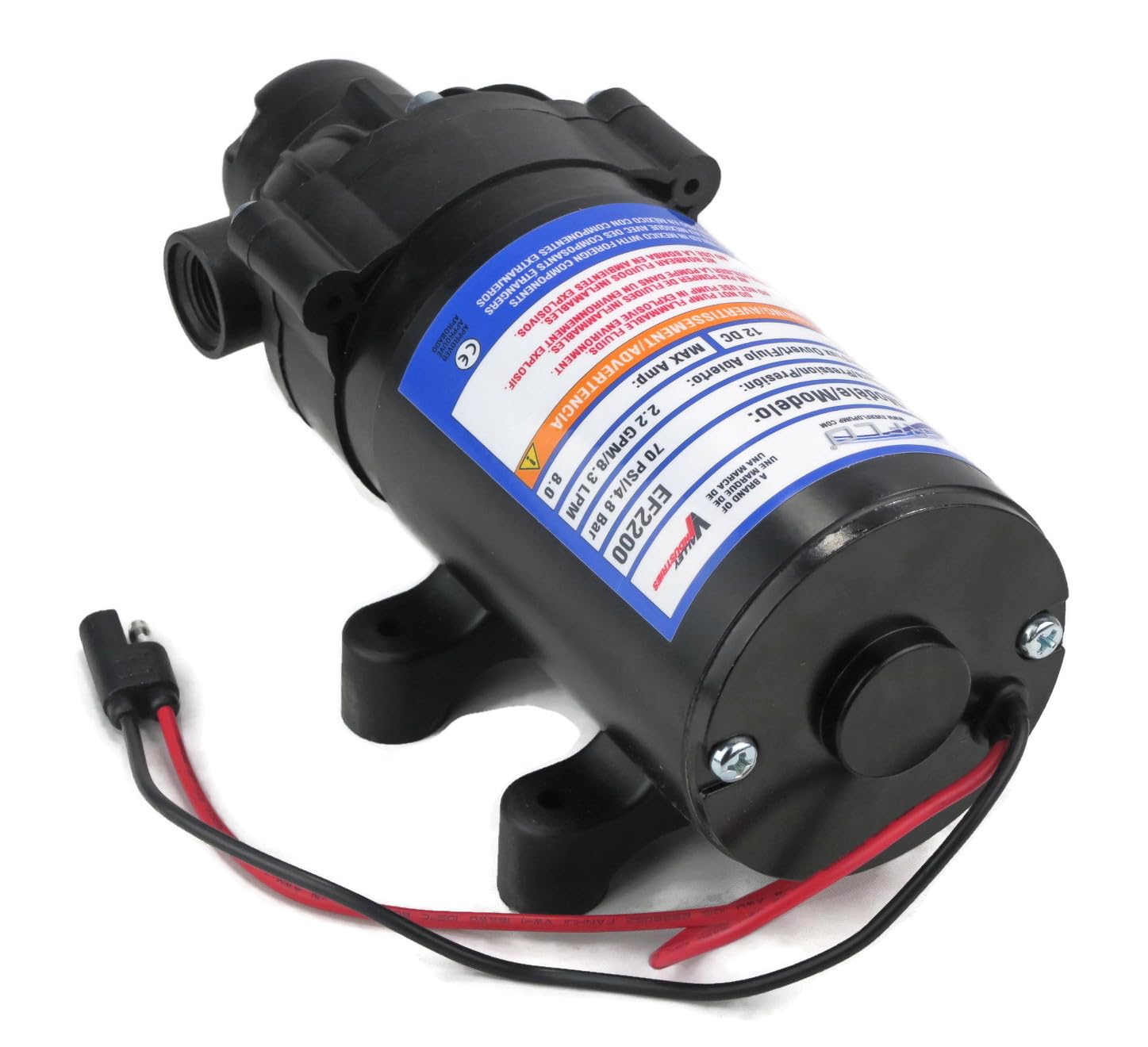

- Includes - (1) Everflo 2.2 GPM, 12 Volt, Diaphragm Pump with 3/8" NPT Ports & Manual/Installation Instructions; comes as shown in the first image
- This pump is intended for use in spraying agricultural solutions and other non-flammable liquids. The pump is intended for use in spraying solutions in liquid form ONLY. The pump is NOT intended for use in spraying solutions dry or aerosolized form, or for use with fumigants
- It's recommended that standard plastic threaded fittings are used to plumb the inlet/outlet ports; the use of metal fittings or rigid pipe is NOT recommended. Restrictions on the inlet may cause a loss in performance. Can be mounted in any position
$567.74
OEM Everflo 2.2 GPM, 12 Volt, 70 PSI, Diaphragm Pump EF2200, EF2200-BOX, EF2200BOX—
$567.74
Description
- OEM Everflo 2.2 GPM, 12 Volt, 70 PSI, Diaphragm Pump EF2200, EF2200-BOX, EF2200BOX
- Specs - Max Pressure: 70 PSI. Open Flow: 2.2 GPM. Volt: 12 VDC. Max AMP: 8.0. Port Type: 3/8" (9.5mm) Hose Barb NPT. Max Fluid Temperature: 140°F. Self Priming up to 10 Feet. Standard Mount Pattern. Refer to images 2 & 3 for more information
- Includes - (1) Everflo 2.2 GPM, 12 Volt, Diaphragm Pump with 3/8" NPT Ports & Manual/Installation Instructions; comes as shown in the first image
- This pump is intended for use in spraying agricultural solutions and other non-flammable liquids. The pump is intended for use in spraying solutions in liquid form ONLY. The pump is NOT intended for use in spraying solutions dry or aerosolized form, or for use with fumigants
- It's recommended that standard plastic threaded fittings are used to plumb the inlet/outlet ports; the use of metal fittings or rigid pipe is NOT recommended. Restrictions on the inlet may cause a loss in performance. Can be mounted in any position
