The ROP Shop | Himore 308653035 FH Front-Facing 2.5G31 | 3100 PSI 2.5 GPM 7/8" Vertical Shaft PRESSURE WASHER PUMP
The ROP Shop | Himore 308653035 FH Front-Facing 2.5G31 | 3100 PSI 2.5 GPM 7/8" Vertical Shaft PRESSURE WASHER PUMP

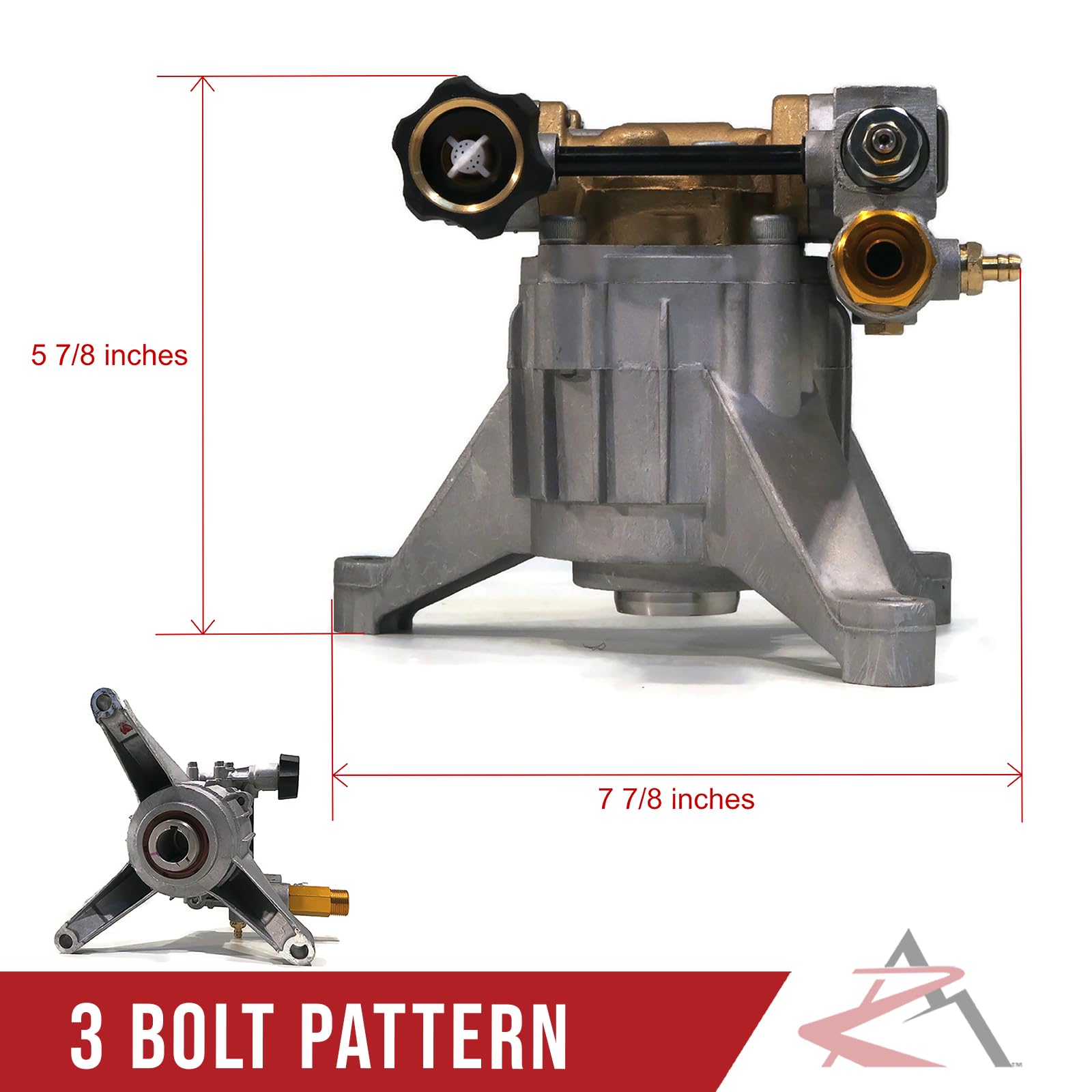

- FEATURE: Maximum Pressure: 3100 PSI. Max Flow: 2.5 GPM. Max Pump Speed: 3400 RPM. Shaft Diameter: 7/8" Shaft. 3 Bolt Pattern: 7 11/16” x 6 3/16” x 6 7/16” & 4" Center to Each Outer Hole. Max Water Temperature: 140° F. Inlet Connection Type: Standard Garden Hose. Outlet Tube Connection: 22mm Male. Chemical Hose - Inner Diameter: 1/4" (6mm). Outer Diameter: 3/8" (9mm). Length: 5'. Material: Rubber. Keyway - Overall Dimensions: 3/16" x 1/4" x 1 1/8"; Refer to images 2 and 3 for more information. This is the EZ version, which has the outlet facing the front

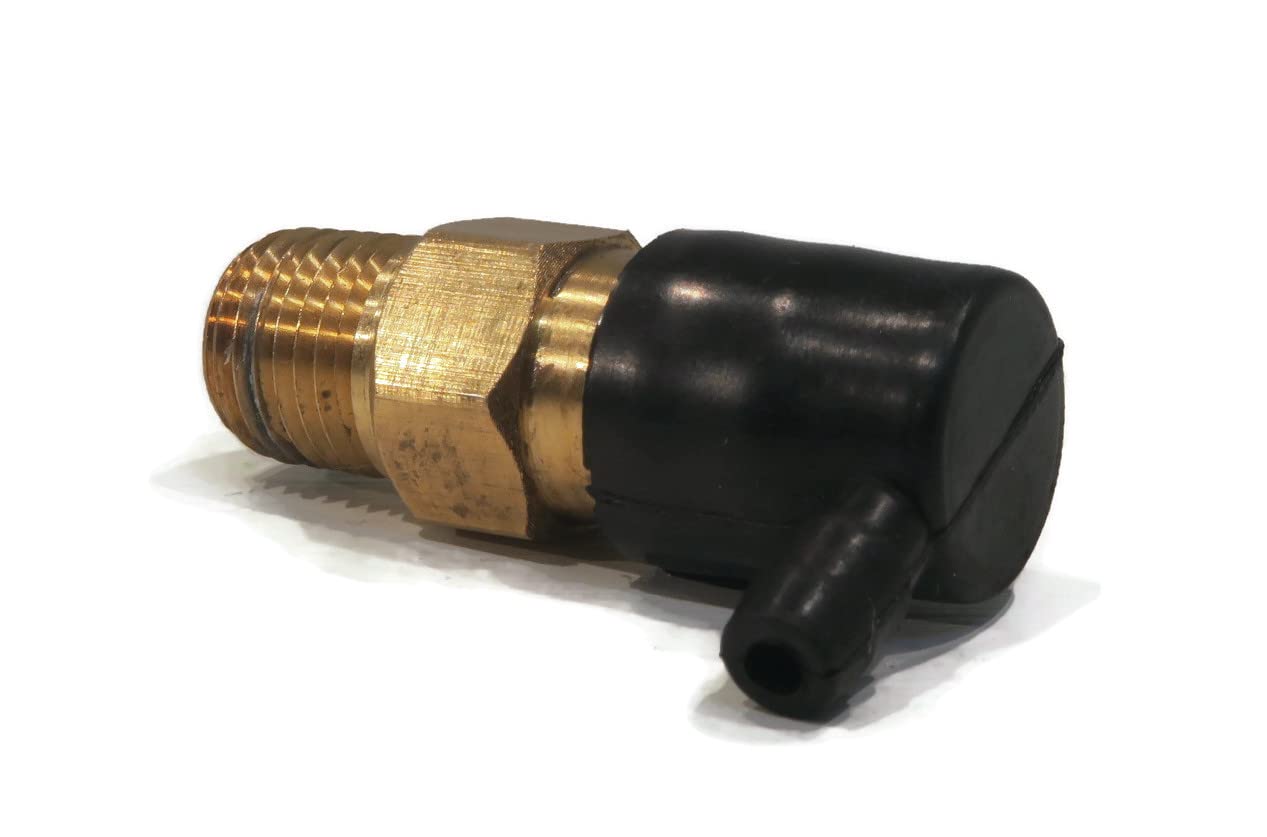

- BUILT TO LAST: Includes - (1) Pressure Washer Pump with Chemical Injector, Unloader Valve, Thermal Release Valve & Outlet Tube (all come installed), (1) Keyway and (1) Chemical Hose with Filter; comes as shown in the first image

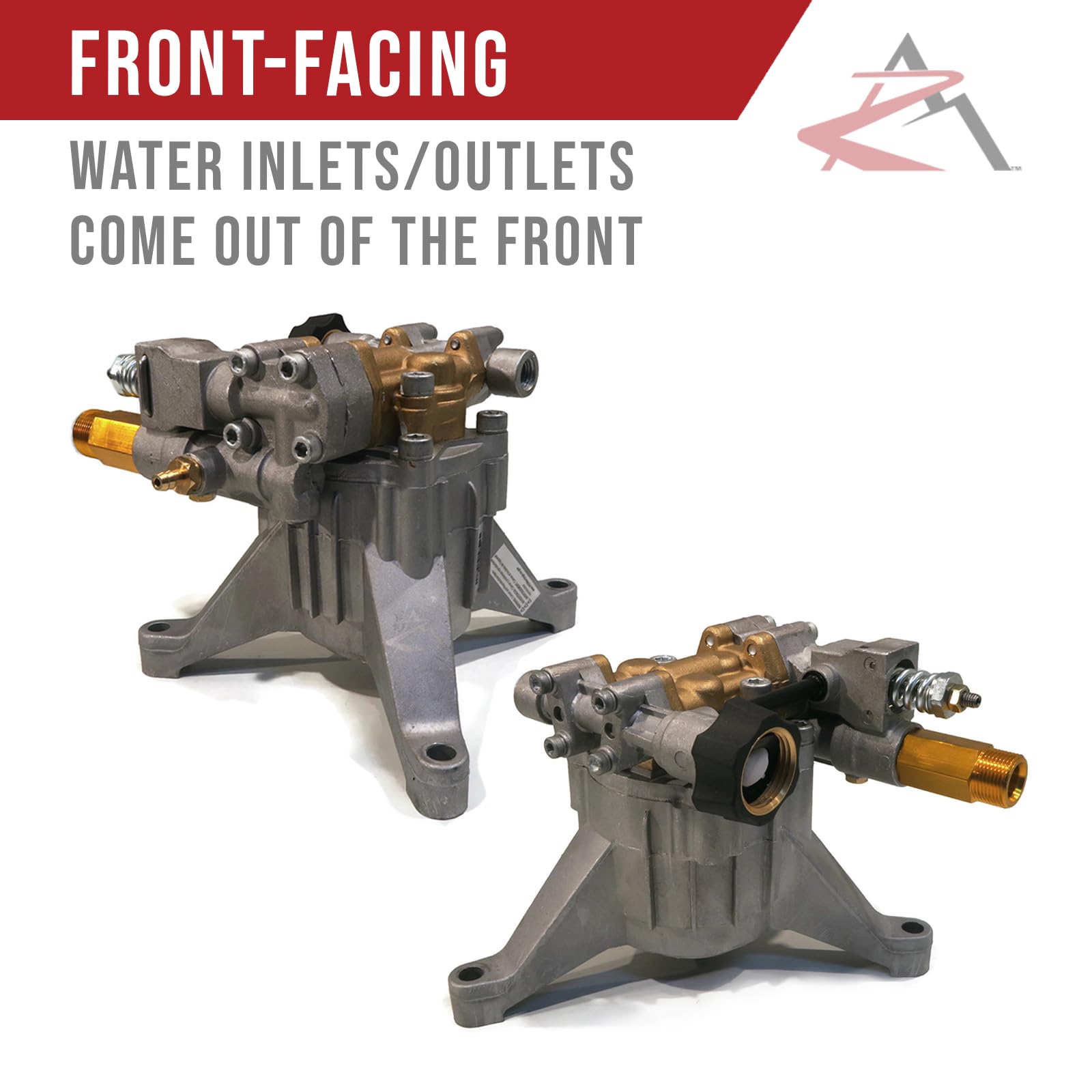

- SIMPLE INSTALLATION: This pump mounts vertical and is a front facing (water inlets/outlets come out of the front of the engine). Pump needs at least 6HP to handle PSI. Pump head can be flipped. Thermal relief valve comes pre-intalled. This is a sealed unit, no oil maintenance required. Please note it is not recommended to run any pressure washer pump above its maximum PSI rating. Doing so can result in damage to the pump (not covered by warranty) and/or serious bodily injury
- COMPATIBLE: Replacement pump for Himore 308653035 FH; Troy-Bilt 020489, 020568, 020413-2, 020414, 020414-1, 020641-00, 020605-00; Simpson MSV3100; Briggs & Stratton 206383GS, 311966GS; Devilbiss VR2522, VR2320; Campbell Hausfeld PW2030V2LE, PW205015LE; Craftsman 580.768340 & more
- NOTE: It is not recommended to run any pressure washer pump above its maximum PSI rating. Doing so can result in damage to the pump (not covered by warranty) and/or serious bodily injury
Select Style
From $681.58
The ROP Shop | Himore 308653035 FH Front-Facing 2.5G31 | 3100 PSI 2.5 GPM 7/8" Vertical Shaft PRESSURE WASHER PUMP—
$681.58
Description

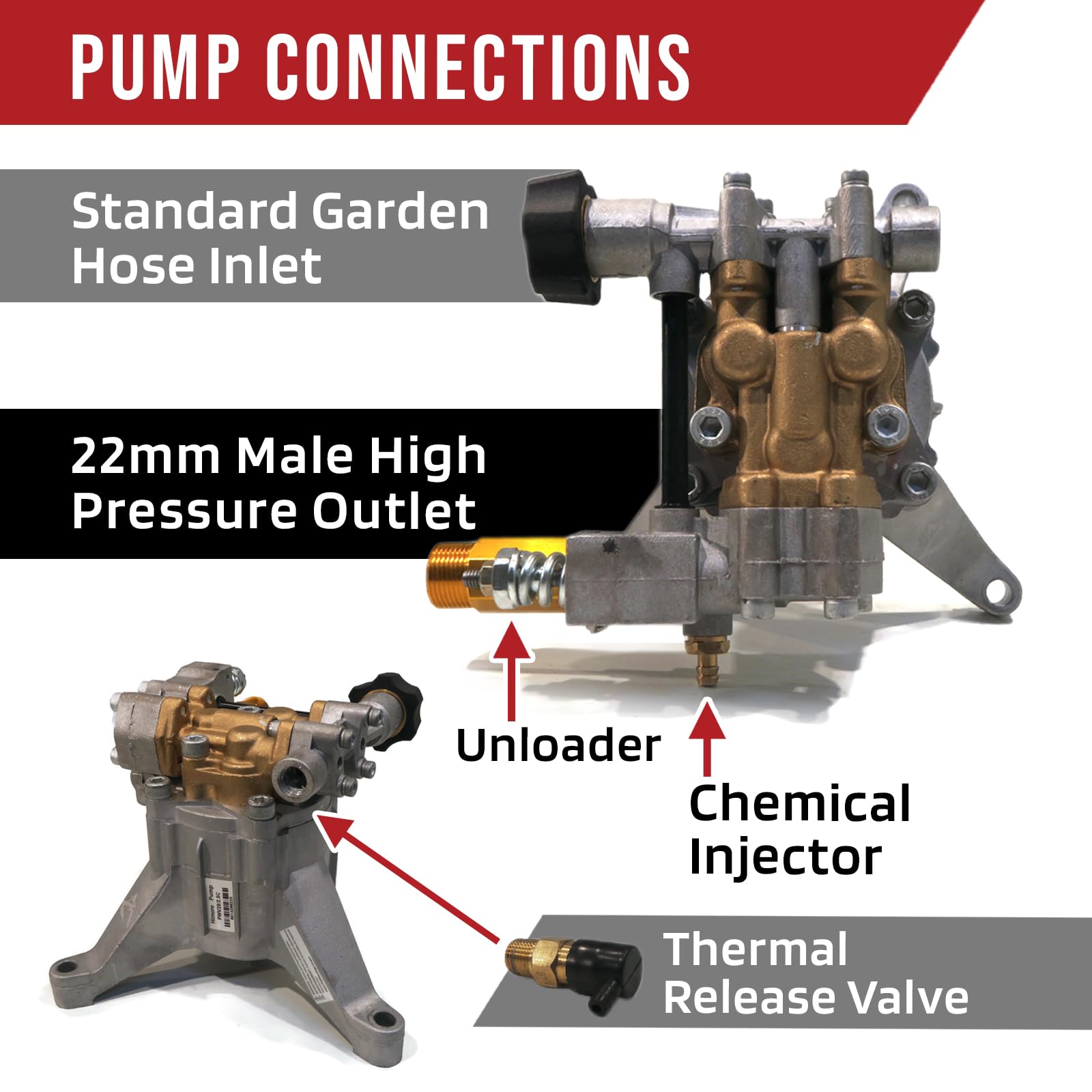

- FEATURE: Maximum Pressure: 3100 PSI. Max Flow: 2.5 GPM. Max Pump Speed: 3400 RPM. Shaft Diameter: 7/8" Shaft. 3 Bolt Pattern: 7 11/16” x 6 3/16” x 6 7/16” & 4" Center to Each Outer Hole. Max Water Temperature: 140° F. Inlet Connection Type: Standard Garden Hose. Outlet Tube Connection: 22mm Male. Chemical Hose - Inner Diameter: 1/4" (6mm). Outer Diameter: 3/8" (9mm). Length: 5'. Material: Rubber. Keyway - Overall Dimensions: 3/16" x 1/4" x 1 1/8"; Refer to images 2 and 3 for more information. This is the EZ version, which has the outlet facing the front
- BUILT TO LAST: Includes - (1) Pressure Washer Pump with Chemical Injector, Unloader Valve, Thermal Release Valve & Outlet Tube (all come installed), (1) Keyway and (1) Chemical Hose with Filter; comes as shown in the first image
- SIMPLE INSTALLATION: This pump mounts vertical and is a front facing (water inlets/outlets come out of the front of the engine). Pump needs at least 6HP to handle PSI. Pump head can be flipped. Thermal relief valve comes pre-intalled. This is a sealed unit, no oil maintenance required. Please note it is not recommended to run any pressure washer pump above its maximum PSI rating. Doing so can result in damage to the pump (not covered by warranty) and/or serious bodily injury
- COMPATIBLE: Replacement pump for Himore 308653035 FH; Troy-Bilt 020489, 020568, 020413-2, 020414, 020414-1, 020641-00, 020605-00; Simpson MSV3100; Briggs & Stratton 206383GS, 311966GS; Devilbiss VR2522, VR2320; Campbell Hausfeld PW2030V2LE, PW205015LE; Craftsman 580.768340 & more
- NOTE: It is not recommended to run any pressure washer pump above its maximum PSI rating. Doing so can result in damage to the pump (not covered by warranty) and/or serious bodily injury
